Q-Audio Quad Handheld Wireless Microphone System with Antenna Distribution
Q-Audio Quad Handheld Wireless Microphone System with Antenna Distribution
Free Delivery for orders over £150 (order by 3.30pm Mon-Fri).
The Q Audio QWM1970HH-4W is a complete four-channel handheld wireless system with integrated antenna distribution — providing everything needed for four simultaneous vocalists or presenters in a single, coordinated package. Ideal for live music venues, theatres, conference facilities, and houses of worship requiring four-channel handheld wireless without the complexity of building individual systems.
The integrated antenna distribution unit (ADU) feeds all four receiver modules from a single antenna pair, simplifying setup and installation dramatically. Each of the four channels provides true diversity UHF reception with independent frequency selection and ACT infrared pairing. Four dynamic handheld transmitters are included, delivering clear, natural vocal reproduction for both singing and speech applications.
Operating on the CH38 licensed band (606.5–613.5MHz), this system delivers the reliable, interference-resistant UHF performance that four-channel wireless operation demands. A UK Wireless Microphone Licence (PMSE shared licence) is required to operate this system — available from Ofcom at modest annual cost, covering UK-wide use on a shared basis. A genuinely turnkey solution — everything is included and coordinated, ready to perform.

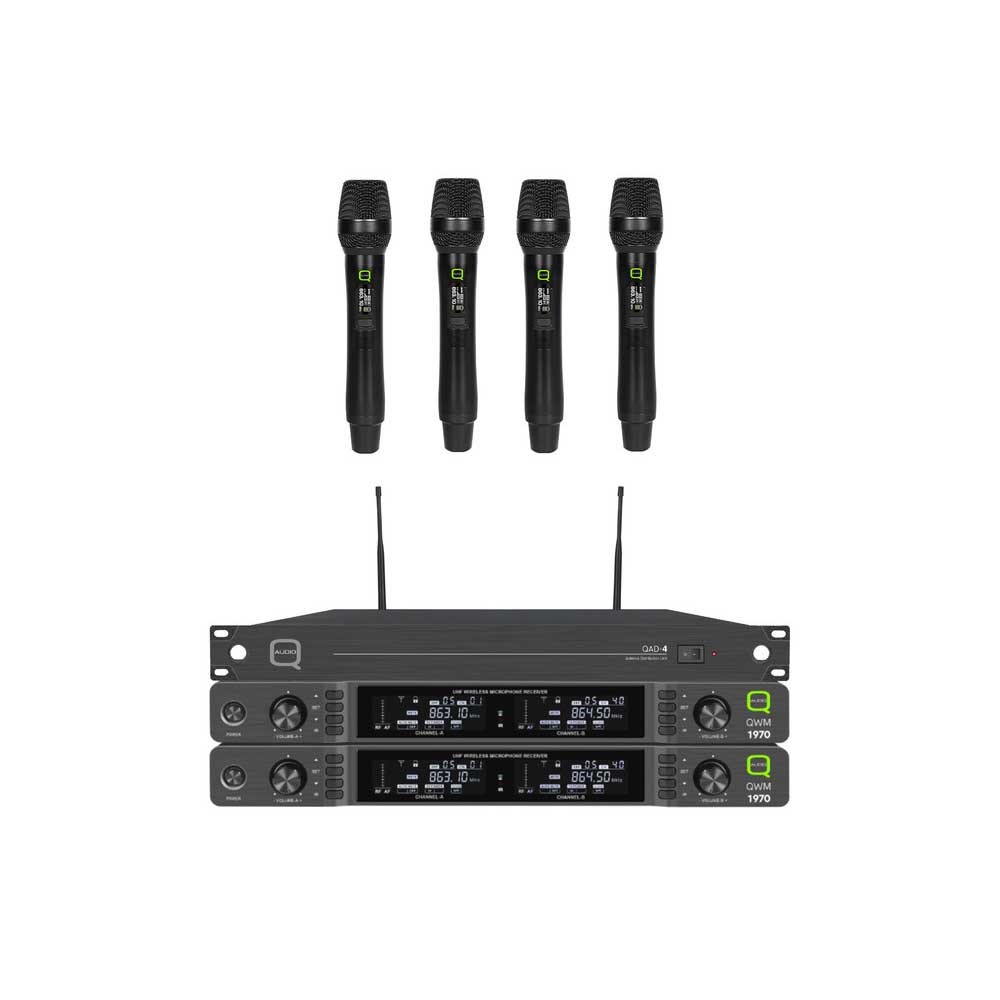

What's Included
- 4× UHF true diversity receiver modules (2× dual-channel receivers)
- 1× Antenna distribution unit (ADU)
- 4× QWM 1970 HH dynamic handheld transmitters
Key Features
- 4 channels of true diversity UHF wireless reception
- Integrated antenna distribution unit — single antenna pair for all 4 channels
- 4 dynamic handheld transmitters included
- ACT infrared pairing on all channels
- CH38 (606.5–613.5MHz) — professional licensed UHF band
- Independent frequency selection per channel
- 4× balanced XLR outputs (one per channel) + 2× mixed unbalanced 6.3mm jack outputs (one per dual-channel receiver)
- Complete turnkey solution — everything included
Technical Specifications
| Channels | 4 |
| System Type | True Diversity UHF |
| Frequency Band | CH38: 606.5–613.5MHz (PMSE shared licence required) |
| Receivers | 2× dual-channel true diversity receiver modules |
| Antenna Distribution | Integrated ADU — single antenna pair |
| Transmitter Type | Dynamic handheld |
| Pairing | ACT infrared |
| Output Connectors | 4× balanced XLR (individual per channel); 2× mixed unbalanced 6.3mm jack (one per dual-channel receiver) |
Frequently Asked Questions
Does this system require a licence to operate in the UK?
Yes — the QWM1970HH-4W operates on the CH38 band (606.5–613.5MHz), which requires a UK Wireless Microphone Licence (PMSE shared licence) from Ofcom. This covers UK-wide use, is straightforward to obtain online, and is renewed annually at modest cost. A licence must be in place before the system is used at any performance or event.
Is this suitable for a live music venue with multiple singers?
Yes — four channels of handheld wireless is a natural fit for bands, choirs, and multi-vocalist performances. The dynamic handheld transmitters provide clear vocal reproduction with good feedback rejection for typical live PA environments, and CH38 provides reliable spectrum for all four channels simultaneously.
Can I use this for a conference or corporate event?
Yes — four handheld wireless microphones is a standard requirement for panel discussions, Q&A sessions, and multi-presenter conference formats. The ACT infrared pairing makes setup fast and straightforward even for non-technical operators.
