The Q Audio QWM1970HH-8W is the flagship handheld wireless system in the Q Audio range — eight simultaneous channels of true diversity handheld wireless audio in a single integrated package. Purpose-built for large-scale productions, major conference events, large houses of worship, and any environment where eight simultaneous handheld wireless channels are a regular operational requirement.
Eight dynamic handheld transmitters are included, all fed through the integrated antenna distribution unit from a single antenna pair for clean, manageable installation regardless of the scale of the event. Each of the eight channels delivers true diversity UHF reception with independent frequency selection and ACT infrared pairing for straightforward coordination across the full system.
Operating on the CH38 licensed band (606.5–613.5MHz), this system delivers the reliable, interference-resistant UHF performance that large-scale wireless operation demands. A UK Wireless Microphone Licence (PMSE shared licence) is required to operate this system — available from Ofcom at modest annual cost, covering UK-wide use on a shared basis. For professional applications where eight simultaneous handheld channels are a routine requirement, CH38 is the correct and appropriate frequency choice.

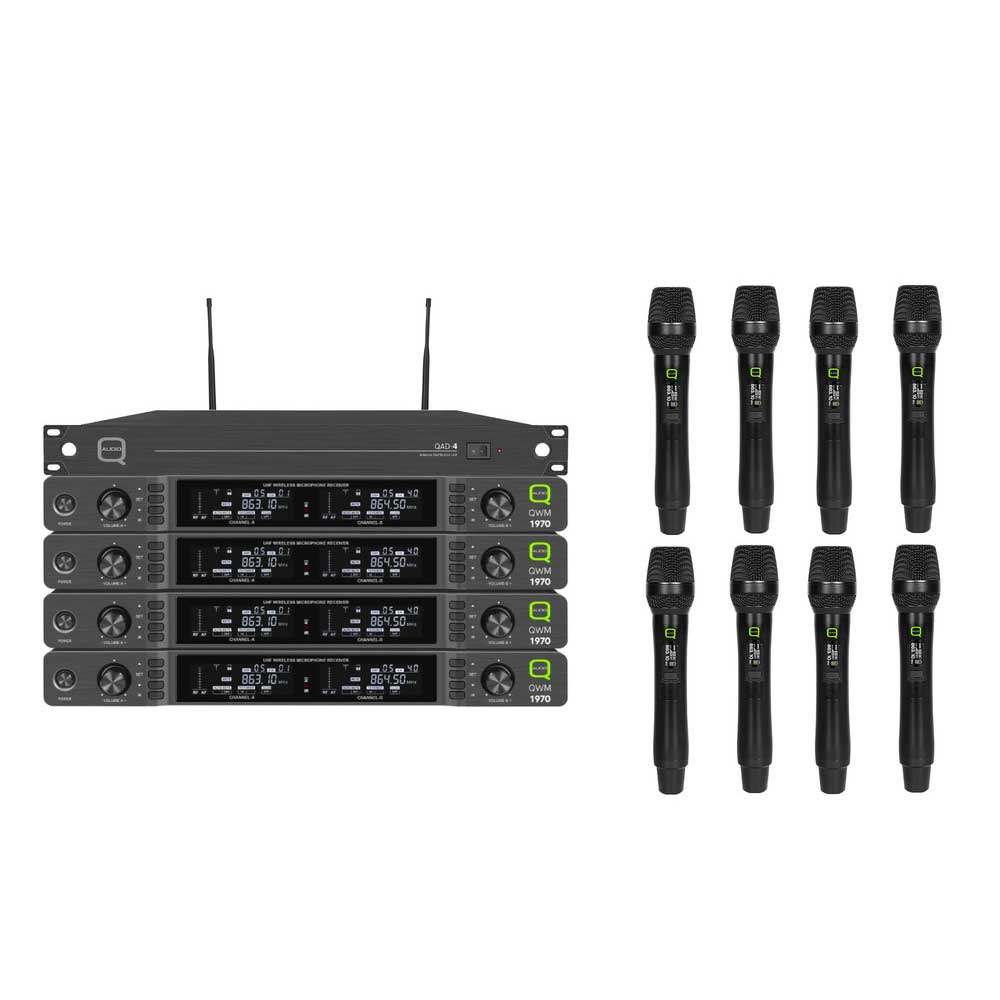

What's Included
- 8× UHF true diversity receiver modules (4× dual-channel receivers)
- 1× Antenna distribution unit (ADU)
- 8× QWM 1970 HH dynamic handheld transmitters
Key Features
- 8 channels of true diversity UHF wireless reception
- Integrated ADU — single antenna pair for all 8 channels
- 8 dynamic handheld transmitters included
- ACT infrared pairing on all channels
- CH38 (606.5–613.5MHz) — professional licensed UHF band
- Independent frequency selection per channel
- 8× balanced XLR outputs (one per channel) + 4× mixed unbalanced 6.3mm jack outputs (one per dual-channel receiver)
- Complete turnkey solution
Technical Specifications
| Channels | 8 |
| System Type | True Diversity UHF |
| Frequency Band | CH38: 606.5–613.5MHz (PMSE shared licence required) |
| Receivers | 4× dual-channel true diversity receiver modules |
| Antenna Distribution | Integrated ADU |
| Transmitter Type | Dynamic handheld |
| Pairing | ACT infrared |
| Output Connectors | 8× balanced XLR (individual per channel); 4× mixed unbalanced 6.3mm jack (one per dual-channel receiver) |
Frequently Asked Questions
Does this system require a licence in the UK?
Yes — the QWM1970HH-8W operates on the CH38 band (606.5–613.5MHz), which requires a UK Wireless Microphone Licence (PMSE shared licence) from Ofcom. This covers UK-wide use, is straightforward to obtain online, and is renewed annually at modest cost. A licence must be in place before the system is used at any performance or event.
Is this suitable for a large choir or theatrical production?
Yes — eight simultaneous handheld wireless channels supports large choir performances, multi-character theatrical productions, and major conference or awards events where multiple speakers or performers need to be heard simultaneously. CH38 is the appropriate frequency band for this scale of operation, providing the spectrum headroom and reliability that eight-channel deployments require.
How does this compare to the 6-way handheld system?
The QWM1970HH-8W adds two additional channels compared to the 6-way system, sharing the same ADU-based architecture and CH38 operation. If you regularly need more than six channels, the 8-way system is the more practical long-term investment.
Can I operate all eight channels simultaneously?
Yes — CH38 provides sufficient spectrum to support eight simultaneous analogue UHF channels with proper frequency coordination, which the built-in frequency scan facilitates. In particularly busy RF environments such as large venues with multiple concurrent wireless users, contact us for advice on frequency planning before purchase.
